Pressure-resistant Seeflex 060ES is a clear, ether-based thermoplastic polyurethane alloy with an internal polyester scrim.

The internally bonded scrim restricts the Seeflex sleeve from stretching and provides superior pressure resistance.

Complies with:

Seeflex complies with the following regulations:
FDA CFR 177.1680 & 177.2600, (EC) 1935/2004, 2023–2006 & 10/2011

Key features/uses:

  • The BFM® Seeflex 060ES connector is only used for over pressure situations for continuous pressure up to 1.3 bar (tested on a static 200mm diameter x 200mm long connector *)

  • IMPORTANT NOTE:   Seeflex 060ES is designed to resist extremely high pressure and therefore it should not be used where the connector is intended to act as a pressure-release point.

* Engineering adjustments should be made for changes in diameter.  For length adjustments or non-static applications, contact us.

BFM fitting connector 060ES
BFM fitting connector Seeflex 060ES

Product Update - The Seeflex 060ES is now more transparent!

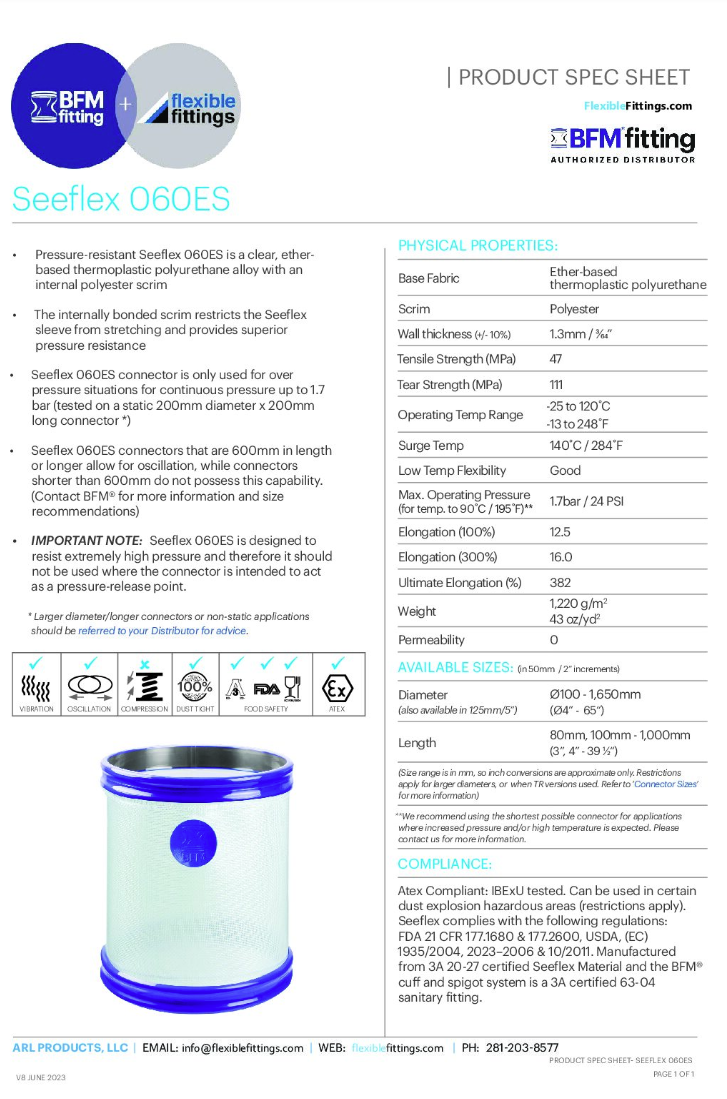

Application summary 060ES
Physical Properties
Wall Thickness (+/- 10%) 1.3mm (3/64 inch)
Tensile Strength (MPa) 47
Max. Operating Temp 120ºC / 248ºF
Low Temp Flexibility Good
Elongation (100%) 12.5
Elongation (300%) 16
Ultimate Elongation (%) 382
Weight 1,220g/m2 / 43oz/yd2
Permeability 0
