Clean & efficient bulk bag loading with the
BFM® Bulk Bag Loader
Filling bulk bags without leakage is a challenge for any production line, so having an easy to use, fast to change, leak-proof filling head is essential for efficient operations.
Watch BFM® fitting in action
How does it work?
The BFM® Bulk Bag Loader is a three-layered, inflatable
filling head that snaps easily into a BFM® spigot welded
to your outlet chute. It features a stainless steel central
core, fully encased in BFM®’s strong, flexible Seeflex
urethane.The Bulk Bag Loader comes complete with an external
air fitting that is simply plugged into a standard 8mm
pneumatic air-line to inflate the super strong and
flexible outer layer.The superior seal of the BFM® fitting system means that
the neck of your bulk bag will be securely held open and
there will be no leaks during loading.Once loading is complete, the outer sleeve can be
instantly deflated for easy bag removal.
BFM® fitting have used their patented spigot and snap-fit connector system to develop a fully sealed, inflatable Bulk Bag Loading head that makes hygienic bag filling a breeze.
-
100% sealed - no dust leakage
-
Strong & durable
-
Quick to fit & remove bags
-
Safer to use - no pinch points
Features:
- Inner & outer sleeves made from strong Seeflex urethane (3A & EU Compliant)
- Stainless steel core tube (encased by Seeflex sleeve)
- Patented BFM® fitting snap-fit top cuff
- Encapsulated stainless steel ring at lower end
- 8mm elbow-style pneumatic inlet fitting (with reinforced insertion point)
The Benefits of BFM® fitting
STRONG: Our Seeflex urethane is much stronger, more flexible and durable than silicone/rubber based products that degrade if inflated multiple times.
SNAP-FIT: Quick fitting & removal of bulk bags. Snap-fit connection makes it faster and easier to take out, clean and replace than any other connector/filling head
SEALED: 100% seal of the BFM® fitting system is better than anything else in the market (no hoseclamps to leak!)
SAFETY: Safer for workers as there are no pinch-points to catch hands against when pulling up bulk-bag neck.
| Diameter: | Expands To Fit Bag Neck Sizes: | Part No: |
| Ø150MM | Ø165 - Ø200mm | 305078 |
| Ø200MM | Ø220 - Ø260mm | 305075 |
| Ø250MM | Ø270 - Ø340mm | 304794 |
| Ø250MM | Ø270 - Ø340mm | 304794 |
| Ø300MM | Ø320 - Ø395mm | 304793 |
| Ø350MM | Ø370 - Ø460mm | 304791 |
| Ø400MM | Ø420 - Ø540mm | 302363 |
| Ø450MM | Ø470 - Ø590mm | 304828 |

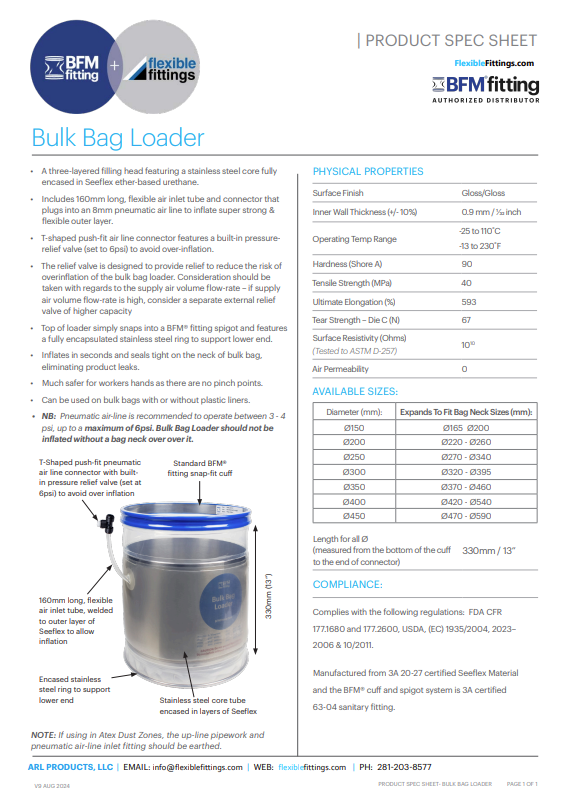

Spec Sheet
Brochure

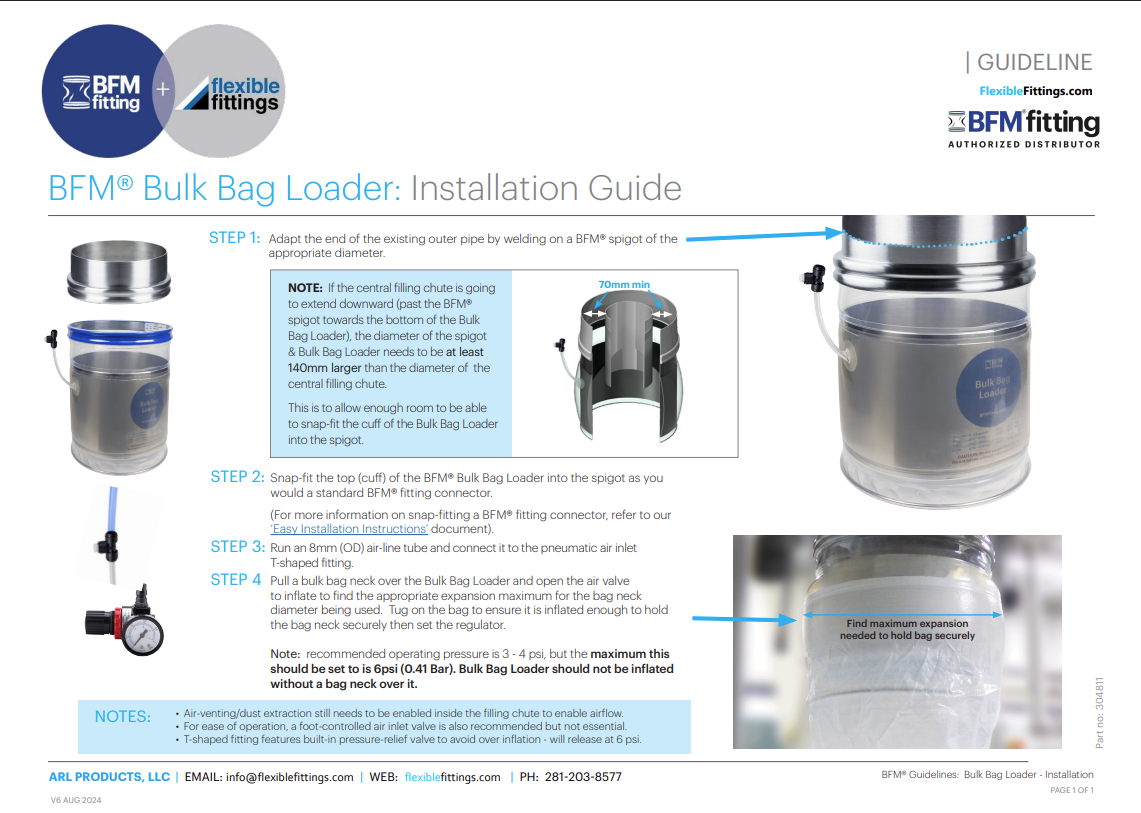

Installation Guide
250mm and 300mm diameter in stock. Rest are available on backorder.
Have you checked out the BFM® IG calculator?
The biggest single cause of product 'failure' for BFM® fitting is an incorrect Installation Gap - ie. the space left between the spigots is either too big or too small for the connector chosen.
Understanding the correct IG is easy with the BFM® IG Calculator. Check it out here.
